Water Curtain Stone Dust Collector: An Essential Aid for Stone Factory Dust Control

December 19 , 2025

In modern stone processing plants, the fine dust generated during the cutting of granite, marble, quartzite and other stone materials not only leaves workshops looking hazy, but untreated emissions also impact the surrounding environment and directly threaten workers' respiratory health. With increasingly stringent environmental regulations, effectively controlling dust emissions has become a pressing practical challenge for many stone factories.

The operational process of the automatic water curtain stone dust collector comprises three key stages:
Stage One: Powerful Suction
The unit's built-in high-efficiency fan rapidly draws dust-laden air into the system. Crucially, fan selection is pivotal—ensuring sufficient suction power while balancing energy consumption.

Step Two: Water Curtain Capture
The drawn-in air encounters a meticulously engineered ‘waterfall curtain’. This curtain comprises countless minute water droplets that effectively capture dust particles as they pass through. This process resembles how rainwater carries dust particles from the air during rainfall.

Step Three: Sedimentation Separation
The dust-laden water flow enters a stainless steel tank. In this relatively static environment, stone dust particles gradually settle to the tank bottom. Purified air is discharged from the top, while the sediment can be periodically removed.

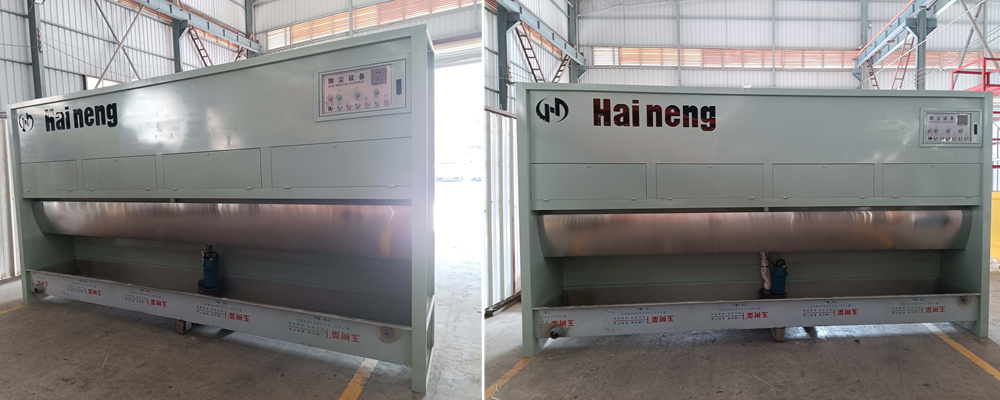

Stone Dust Extraction

How to Select Suitable Dust Collector for Granite Shop？

Matching the airflow capacity is the most critical selection parameter. You can make a simple estimate: measure the workshop area, consider the number of machines operating simultaneously, and the volume of dust generated. Typically, small to medium-sized stone processing workshops require equipment with an airflow capacity of 3,500–72,000 m³/h. Insufficient airflow yields poor dust removal, while excessive capacity wastes energy. The optimal operational range is within a 4-metre radius. For larger processing areas, consider deploying multiple units in zones or installing supplementary suction ducts. During planning, ensure sufficient space for maintenance operations. Stainless steel, though slightly more costly, offers superior durability in humid, dusty environments. For budget constraints, a practical solution involves using stainless steel for critical components like water tanks, while applying high-quality carbon steel with anti-corrosion coatings elsewhere.

Advantages:

Water film stone dust collector effectively handle both coarse granite dust and fine marble powder. Unlike certain filter-based dust collectors prone to clogging, the water curtain design largely avoids this issue.
Weekly maintenance involves a ten-minute rinse of the water curtain filter layer, with sediment removal from the water tank every fortnight – a frequency most factories find manageable.
Stainless steel water tanks offer corrosion resistance and extended service life, reducing replacement costs.
Multiple models available: 3m, 4m, 5m, 6m, etc., suitable for workshops of varying sizes.

Routine Maintenance:

The stone dust collector requires regular servicing and upkeep, ideally assigned to a dedicated operator. After approximately one week of operation (depending on dust levels), open both front and rear doors to rinse residual dust from the filter layer. This prevents clogging of the ventilation system, which could impair suction performance. When dust accumulation in the water tank becomes excessive, promptly drain the contaminated water and refill with clean water before resuming operation. Regularly inspect the operational status of the fan and water pump to ensure sustained, efficient performance. In cold winter regions, implement frost protection measures by adding antifreeze to the water or employing insulation. During high summer temperatures, ensure adequate ventilation to prevent motor overheating.
